Somté PSG
Full PSG .... absolutely anywhere
Whether you are looking for a recorder for attended sleep studies, or you wish to perform full polysomnography in an unattended, ambulatory setting, or both, Somte PSG is the solution you’re looking for -
Full PSG for in-
Please click the "Laboratory" Tab above
Full PSG for portable/ ambulatory recording
- The simple patient worn unit allows rapid setup and use of the system anywhere.
- Fully self contained. No PC or laptop is required to setup and
- acquire data, although data cards can be pre-
programmed to automatically start and stop recording at pre- set times, and add patient identification to the study. - Integrated LCD screen to check the quality of signals before or during recording.
- Unique signal status display for instant signal integrity and impedance checks. Signal integrity can be displayed during data
- review for quality assurance.
- Integrated storage card (Compact Flash) up to 2GB for up to 24 hours data collection.
- Uses analogue differential amplifiers for the simplest and most robust recording of physiological signals, even in less than ideal situations.
Technical Specifications
Available channels
- 6 x EEG
- 2 x EOG
- 2 x Chin EMG
- ECG – with Thoracic Impedance option
- Airflow from Pressure transducer
- Snore
- Pressure (for CPAP/ Bilevel)
- Thoracic RIP band
- Abdominal RIP band
- 2 x Limb
- Position
- Oximeter provides SpO2, Pulse Rate, Plethysmography waveform and Oximeter probe status
- Aux selectable as thermistor, external position sensor, Aux AC or Aux DC
Weight
- 205gm (7.2 ounces) (excluding batteries)

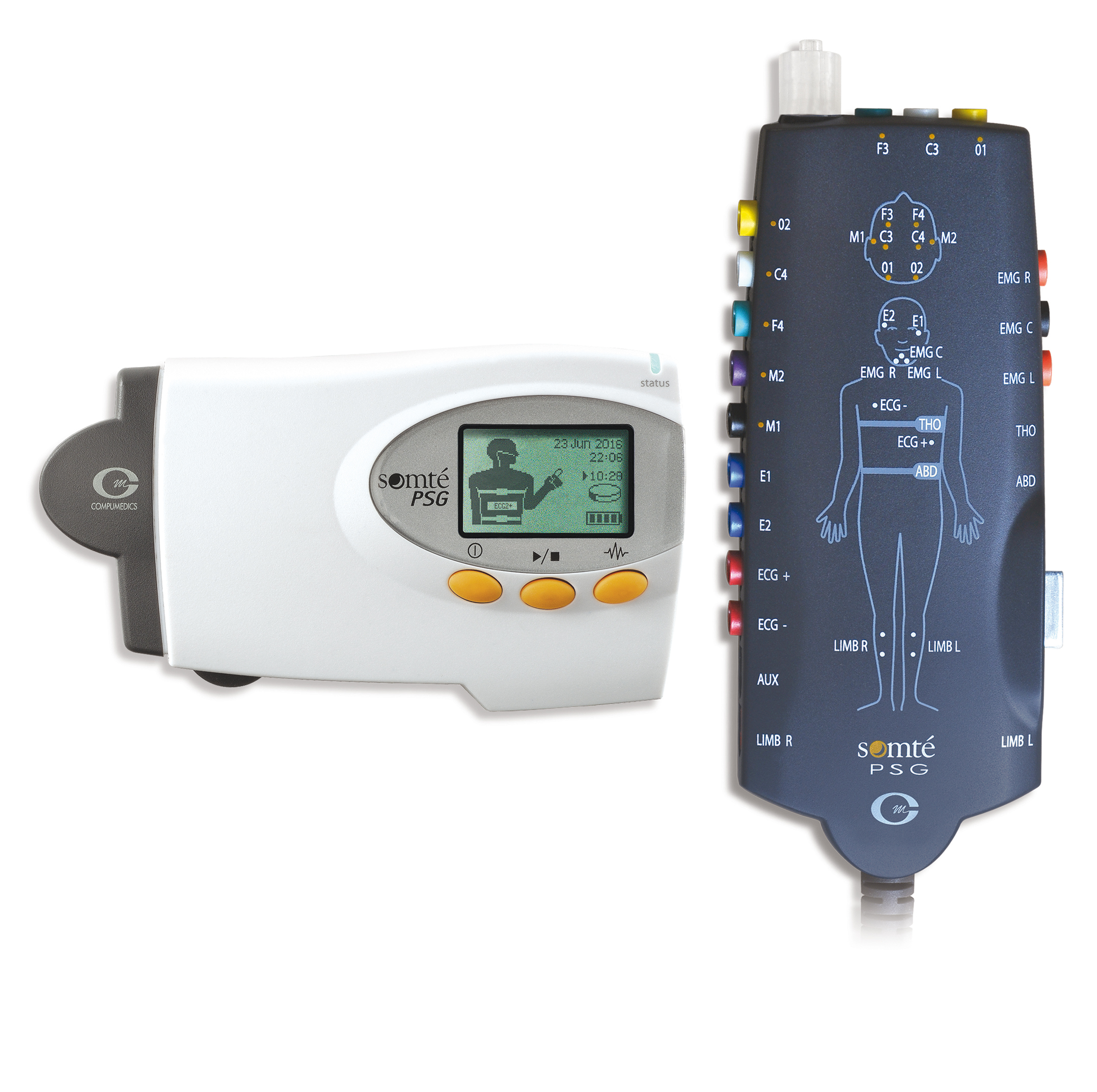

- Recorder Size: Width113mm x Height 65mm x Depth 30mm (including belt clip), (4.4 x 2.5 x 1.2 inches)
- Patient Input Box: Width 53mm x Height 133mm x Depth 25mm (including belt clip), (2.1 x 5.2 x 1 inches)
Flexible Signal Options
- Use a cannula and pressure transducer and/or thermistor to record airflow
- Use Inductive Plethysmography or thoracic impedance technology to record respiratory effort
- Use position sensor integrated into headbox or an external position sensor if preferred
Sampling Rate
- 1-
200Hz
Wireless Technology
- Uses Bluetooth Wireless technology (Class 2) for patient comfort
- Up to 10m range from bedside station to patient -
dependent on environment
Power
- 2 x AA alkaline or NiMH batteries
Recording Time
- Up to 24 hours of recording
Event Button
- Any button press during recording is recorded as an event
Electrode/Sensor status
- Electrode/sensor status indicator before and during recording as well as at review
Software Options
- Data Card Manager allows selection of options, pre-
set start and stop recording times, set up patient information - PSG Online for monitoring attended studies via Bluetooth. Not required for unattended studies
- ProFusion PSG for data analysis
- Digital Video can be used with PSG Online
- ProFusion neXus Lab Manager for data and workflow management
