Back to NordicNeuroLab products

Software:

nordicICE

Advanced MRI Perfusion Software

nordicICE couples a perfusion package and a permeability analysis package. With these modules a large range of physiologically relevant parameters related to tissue perfusion and capillary permeability can be addressed both qualitatively and semi-quantitatively using state-of-the-art methods.

With nordicICE the user can generate high-quality perfusion maps for DSC, DCE and ASL in seconds. The advanced Batch processing module can be configured to process all your perfusion data with a few clicks.

The combination of advanced features, a user-friendly interface, myriads of options and possibilities, robust algorithms and fast processing times makes nordicICE the ideal tool for clinical research, particularly for Perfusion.

nordicICE implements advanced analysis methods for:

Dynamic susceptibility contrast perfusion (DSC)
Dynamic contrast enhanced perfusion (DCE)
Arterial Spin Labeling flow perfusion (ASL)

Modules & Functionality:

Perfusion DSC and permeability DCE
Arterial Spin Labeling (ASL)
Relaxometry (T1 & T2 mapping)
Diffusion Weighted Imaging (DWI)
DTI
BOLD fMRI
Batch processing
DICOM database
Wide range of general image analysis tools

Batch functionality for processing of many datasets:

Image conversion, downsampling, resampling
Pre-processing
Motion correction
Normalize and Mask
ROI analysis
Image pixel extraction with easy export of data to Excel for further analysis
Perfusion analysis
DCE analysis
T1 relaxation analysis

nordicICE is a research only application - no clinical approvals.

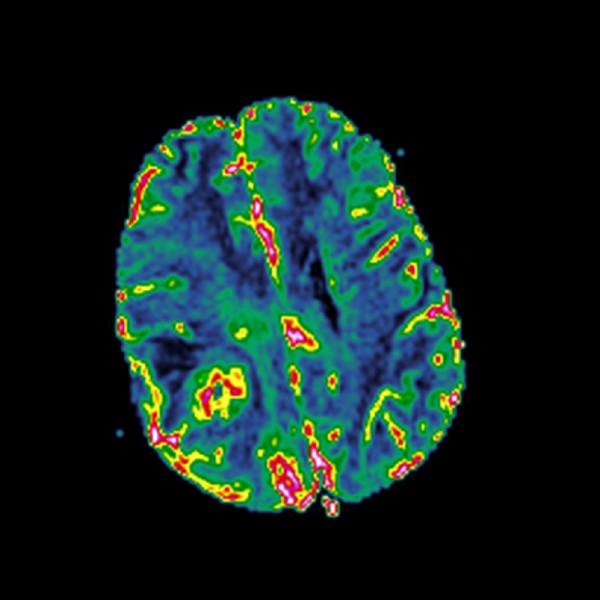

DSC Perfusion

Fast generation of perfusion maps: Blood volume (CBV), Blood flow (CBF), Mean Transit Time (MTT), Time to Peak (TTP) or Delay (SVD), Leakage (Ktrans), Brain Mask, Vessel Mask.

State-of-the-art deconvolution techniques, choice of manual or fully automatic selection of arterial input function, automated calculation of leakage map when the BBB is disrupted (leakage map - Ktrans), vessel removal algorithm for increased accuracy in evaluation of maps. Create normalized CBV maps. Combine perfusion and diffusion imaging for stroke evaluation.

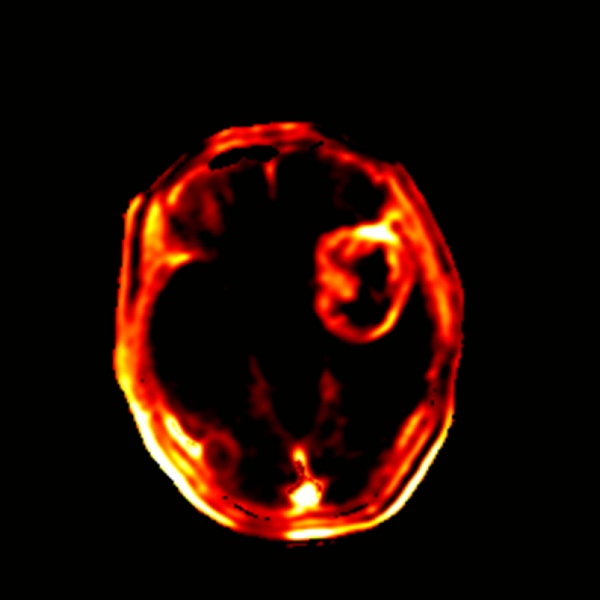

DCE Perfusion

Quantitative maps: intra-extravascular leakage, extra-intravascular reflux, extravascular-extracellular space, plasma volume fraction.

Qualitative maps: area under curve, time to peak, peak enhancement, wash-in/wash-out rates

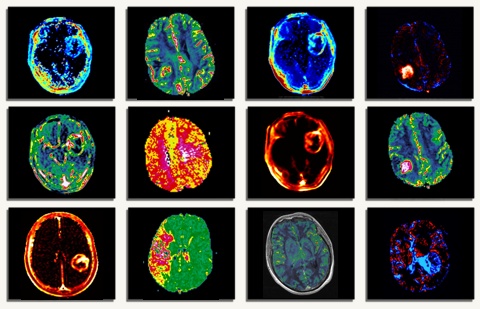

click on the images to enlarge
