The Challenge

The use of functional MRI (fMRI) in neurological research and practice has grown dramatically. This important tool is uncovering many of the mysteries of the brain and its response to diseases, stimulation and injury. Learning and imaging the underlying brain response to pain is impossible though, without pain stimulator that can work in an imaging environment.

The Science of Imaging Pain

The anterior cingulate cortex (ACC) has been associated with many aspects of behavior, including pain. PET studies have consistently shown ACC activations during noxious thermal tasks. fMRI studies of individual subjects indicate that a small region of the posterior aspect of ACC can be activated during painful median nerve stimulation and is separate from the more anterior ACC region involved in attention.

Studies using fMRI with the PATHWAY stimulators can help determine the spatial distribution of cool, warm, cold pain, heat pain and motor-related activations in the ACC of subjects. Research has supported the notion that the posterior ACC is involved in the processing of pain. Data also revealed modality-specific regions within the ACC related to noxious thermal sensations; innocuous thermal sensations and/or complex coordinated motor execution. The data also corroborate previous suggestions that the medial wall can be subdivided into regions involved in motor, sensory and cognitive (e.g., attention) tasks.

Applying Medoc Solutions in fMRI

Medoc’s PATHWAY, non-magnetic pain stimulators, are fMRI conditional and can be used in the magnetic environment enabling researchers using fMRI to administer thermal painful and non- painful stimuli and image the brain response to these stimuli through the MRI device.

In this application the PATHWAY model CHEPS and ATS are not used as a diagnostic tools, but rather sophisticated pain stimulators integrated in the fMRI system and synchronized with its main computer. Medoc’s stimulators are currently being used by pain and neurological researchers at the Harvard University Medical School, the University of Toronto, pain research institutes in England, the University of Munich, the University of Birmingham in Alabama, the Veterans General Hospital, and National Yang-Ming University in Taipei and in over 150 other locations worldwide.

Medoc fMRI Components & Configuration

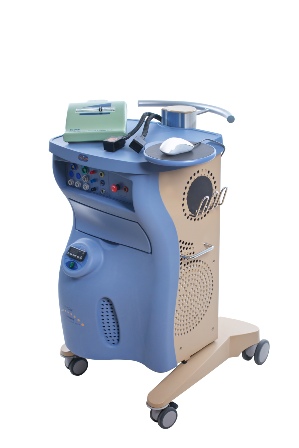

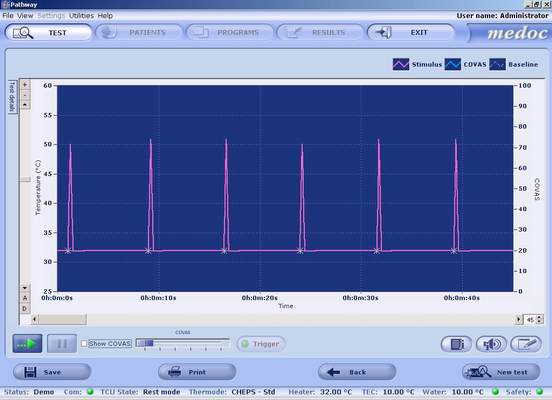

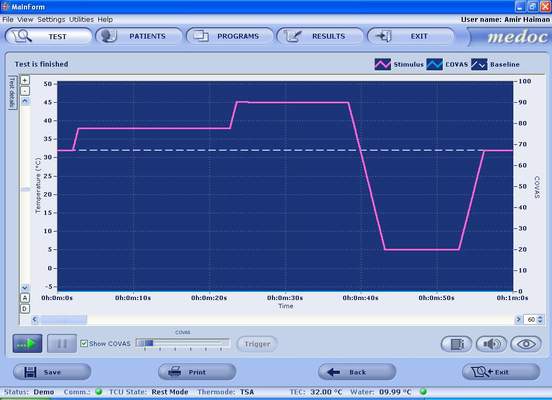

PATHWAY model CHEPS & ATS
Special non-magnetic 30x30mm or 16x16mm Thermodes for TSA or 27mm diameter Thermode for CHEPS, with 10 meter long cable
TTL Output for triggering external device
TTL Input for triggering the PATHWAY from external device
70 mm fMRI diameter filter for the thermode
Non magnetic CoVAS
Non magnetic patient response unit and emergency button

The stimulator is located outside the MRI room. The special thermode adapted for use in a magnetic environment is inserted into the room via a special hole in the wall and through the filter.

* THE PATHWAY WAS SUCCESSFULLY TESTED TO WORK WITH UP TO 4 TESLA MRI SYSTEMS.
