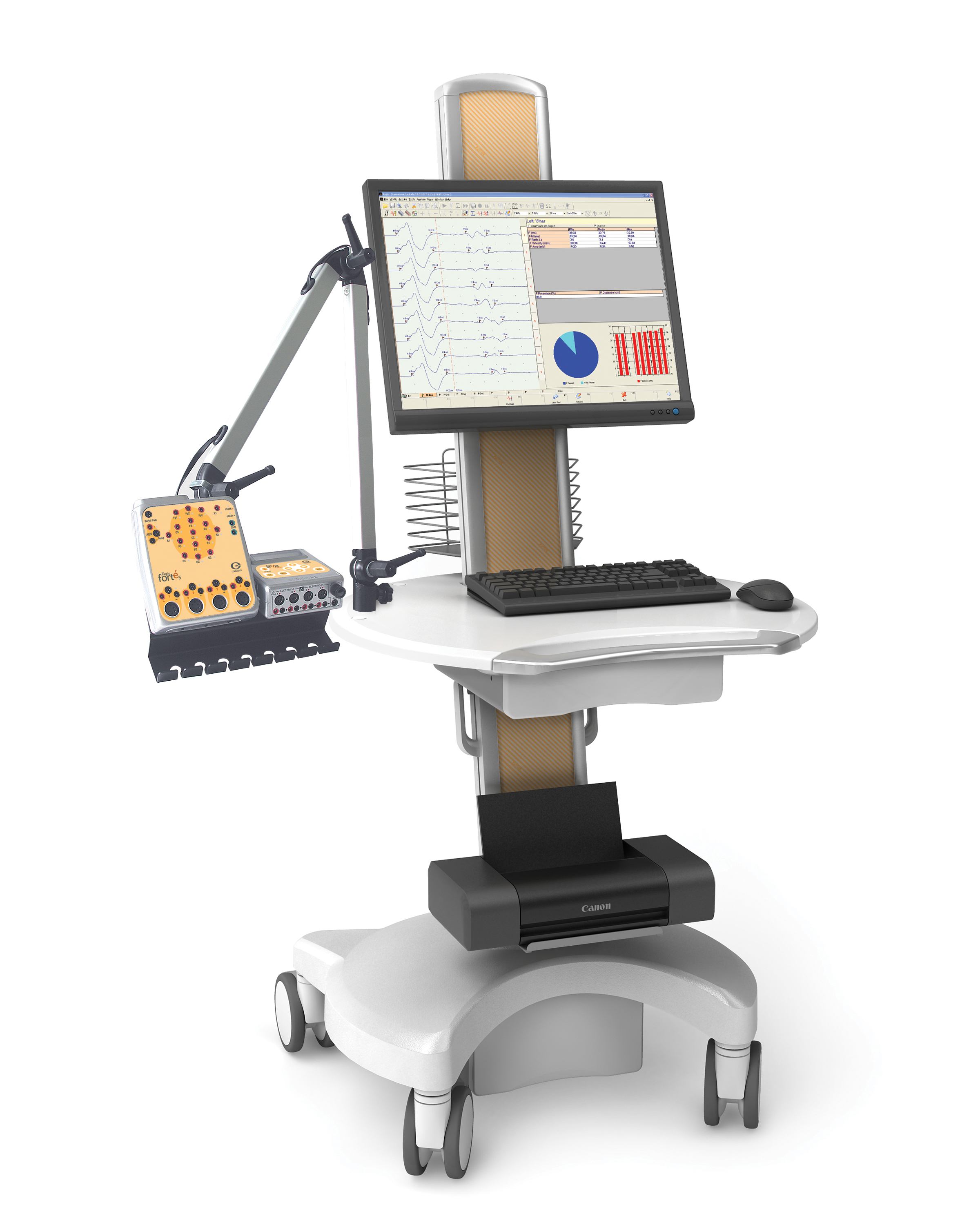

Xegis Forté EMG/EP

Performance and Versatility

Xegis Forté EMG/EP: Performance and Versatility

A comprehensive suite of new generation Xegis EMG/EP solutions ranging from 5 to 17- channel configurations. The new Xegis Forté offers flexibility, customization, versatility and importantly, high performance and reliability.

Key Features :

Comprehensive range

• Select from 5, 9, 13 and 17 Channel EMG/EP systems

High fidelity amplifier for uncompromised signal quality

• Noise lower than 0.35 µVrms @ 10KHz
• Bandwidth from DC to 20000 Hz
• Sampling rate up to 65000 Hz for every channel
• 16 bit successive approximation Analog/Digital Conversion
• Cable power supply or battery type “AA”

Versatility with ability to combine each channel to any input connector on the headbox

High efficiency EMG

• Unlimited needle EMG recording and playback
• Time saving customizable protocols for every exam
• Automatic online report generation
• Dedicated control keypad and footpedal
• Full flexibility in single fibre EMG

Performance Stimulator

• Up to 2 fully programmable stimulators
• Up to 300 Hz electrical stimulation rate
• Up to 4 stimulator outputs
• Automatic stimulation artifact removal• Perfect accuracy in Evoked Potentials:
• Stimulation artifact-free recordings
• Fully adjustable rejection thresholds
• High quality acoustic and visual stimulations
• Advanced filters for better signal quality

Network integration with

• Centralized data storage
• SQL database - interface to hospital database

Magnetic and Laser Stimulators- compatible with full management of Trigger IN/OUT

More expansion possibilities

• Wavelet analysis of EP signals
• EP grand average - study of patient groups
• ERP with continuous signal recording
• Amplitude maps with SPLine interpolation
• Generate ERP paradigms by integrating stimulator

Xegis Forté supports the following tests:

EMG Tests

• Needle EMG, MUAP Quantitative Analysis, Triggered EMG
• Turns & Amplitude, Functional EMG (IPA combined with MUAP)
• Single Fibre, Stimulated SF (Jitter and Fibre
• Motor Unit Number Estimation (MUNE)
• Motor and Sensitive Nerve Conduction Velocity
• F Wave, H Reflex, Repetitive Stimulation
• Collision test and Inching test
• Blink Reflex, Inhibitory Reflex, Jaw Jerk
• Symphatethic Skin Response (SSR), R-R Interval Analysis
• Motor Evoked Potentials (MEP) with integrated F Wave
• Configurable protocols for even more testsDensity), Macro EMG

EP Tests

• SEP: Somatosensory Evoked Potentials
• VEP: Visual Evoked Potentials - Steady State too
• AEP: Acoustic Evoked Potentials (Middle, Long Latency)
• BAEP: Brain Acoustic Evoked Potentials
• MEP: Motor Evoked Potentials
• LEP: Laser Evoked Potentials
• P300, MMN: Cognitive Evoked Potentials
• ERP – Event related potentials
