Medical EEG:

Stat X-Series Medical EEG Systems

The Stat X-Series Systems offer healthcare professionals cost-effective and practical solutions for on-call portable EEG in minutes. Every headset features designs that eliminate all wires to enable mobility during recordings, while also avoiding the artifacts and noise typically associated with traditional, wired EEG systems. Standard software and SDK are included to enable new diagnostic/treatment innovations with medical indications of use.

Stat X-Series Systems share:

• Easy-to-use, lightweight, and comfortable design
• Rapid, efficient set-up and cleaning
• Up to 20-meter wireless transmission
• Real-time signal quality monitoring
• Saves data in EDF format, for universal compatibility
• SDK integration across 3rd party industry software
• Precision synchronization across multiple users

EEG Characteristics:

• Referential with linked mastoids
• Sampling Rate: 256 samples per second
• Bandpass: 0.1 Hz HPF and 100 Hz LPF
• Dynamic range: Fixed gain + 1,000µV
• Resolultion: 16 bit, CMRR 105 dB
• Noise: ~2-3 µV p-p @ 10 Hz and 50 k? impedance

Optional Channel Features:

• Accepts any analog dual-lead signal
• Gain of +1,000µV, 2,000µV or 4,000µV per channel, depending on system

Stat X-Series Clinical Applications

The Stat X-Series Systems are cleared for use as medical diagnostic devices. Our SDK and software integration capabilities allow these devices to serve as enabling technologies for new clinical applications such as those described below.

Clinical Applications

• Biomarker Studies
• Neuropsychiatry Evaluations
• On-Call EEG
• Autism Assessments
• Neurorehabilitation (Medical BCI) for Stroke and Spinal Cord Injury
• Tele-Neurology
• Epilepsy Monitoring (8 hour session max)
• Clinical Neurofeedback
• Dementia & Delirium Assessments

Alertness & Memory Profiler (AMP)

• Scalable, inexpensive neurocognitive assessment for diagnostic treatment outcome evaluation for sleep, neurological and psychiatric disorders
• Comprehensive neurocognitive test battery synchronizes performance and EEG data with any Stat X-Series system
• JAVA based for web delivery to any tablet, iPad or desktop interface
• Easy-to-follow, self-administered user instructions with automated train-to-criterion and data quality monitoring
• Automated calculations of Vigilance, Processing Speed, Memory, Inhibition, Selective Attention Decision Making and Cognitive Fluctuation
• Comparisons to over 7,000 performances with normative, sleep and neurological disordered populations
• Repeated measures testing for evaluations of drugs or other interventions

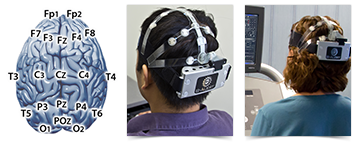

Stat X24 with NeuroGuide

• LORETA current source density assessment and intervention referenced to a large normative database
• Deliver phase reset biofeedback; Laplacian biofeedback; LORETA current density, coherence, phase and phase reset biofeedback
• Neuro-imaging with 3-dimensional real-time rendered brain to visualize network dynamics using Neuroguide’s BrainSurfer software
• Provide comparative and intervention assessment with comparisons to the world’s largest database of normative and disease state conditions
• Fully integrated with X-24 system

Neuro-Rehabilitation

• Objectively assess restructuring of neural pathways during stroke, TBI and spinal cord injury rehabilitation
• Decode neural signatures of intention to move during functional electrical stimulation to provide real-time feedback
• Utilize a brain-computer interface (BCI) to recognize intent, provide feedback based on error-related neural signatures to reinforce learning and to exert control of functional electrical stimulation
